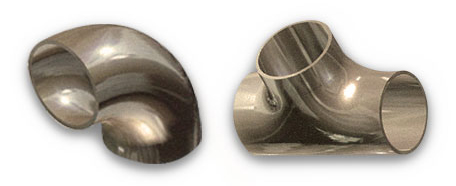

| CUNI PIPE & FITTINGS |
 |
The chemical composition of alloys CuNi 90/10 and CuNi 70/30 have been optimised in order to maximize the behaviour of the metal under the most stringent conditions of seawater corrosion. Additionally, CuNi 90/10 and CuNi 70/30 meet all requirements of most international standards.
|
| |
| Corrosion Behaviour |
| CuNi 90/10 and CuNi 70/30 have an excellent behaviour when exposed to all forms of marine corrosion. This property is mainly due to the fact that the alloy prevents dissolution by forming a very strong protective surface film. |
| |
| CuNi 90/10 and CuNi 70/30 possible factors of corrosion |
| |
| Corrosive environment |
Probable Corrosive |
Behaviour in service |
| Clean sea water circulation at a velocity of up to 1 m/s |
Uniform or general |
0,0025 – 0,025 mm/an |
| Clean sea water circulation at a velocity of up to 3,5 m/s* : CuNi 90/10 and 4,5 m/s* : CuNi 70/30 |
Impact corrosion |
Satisfactory |
| Polluted sea water |
General corrosion and accelerated pitting corrosion |
Less resistance |
| Deposits accumulated at the surface |
Local attack |
Generally good |
| Corrosion + stress |
Stress corrosion |
Very resistant |
|
| |
| *The local speeds resulting from obstructions can be higher |
| |
| Physical Properties |
| |
| Typical values |
Units |
CuNi 90/10 |
CuNi 70/30 |
|
Density (20°C)
|
Kg /m3
|
8900
|
8900
|
|
Electrical resistivity (20°C annealed)
|
µΩ.cm
|
19
|
34
|
|
Thermal conductivity ( 20° to 200°C)
|
W/m.°K
|
50
|
30
|
|
Coefficient of expansion ( 20° to 200°C)
|
C x 10-6
|
17
|
16
|
|
Modulus of elasticity ( 20°C annealed)
|
MPa
|
126 000
|
126 000
|
|
Annealing temperature
|
°C
|
760 - 800
|
780 - 820
|
|
Melting interval
|
°C
|
1100 - 1150
|
1180 - 1240
|
|
Magnetic Permeability ( 20° annealed)
|
|
1.08 – 1.80
|
<1.05
|
|
| |
| Mechanical Properties |
| |
|
Typical values
|
Units
|
CuNi 90/10
|
CuNi 70/30
|
|
Tensile strength (UTS), (Rm)
|
MPa
|
≥ 310
|
≥ 350
|
|
|
µΩ.cm
|
19
|
34
|
|
Proof stress (YS 0,2), (Rp 0,2)
|
MPa
|
≥ 110
|
≥ 130
|
|
|
ksi
|
≥ 16
|
≥ 19
|
|
Elongation (E 5,65 √S)
|
%
|
≥ 35
|
≥ 30
|
|
Hardness (HB10 D2)
|
|
≥ 70
|
≥ 80
|
|
| |
| |
| |
